₦75,000

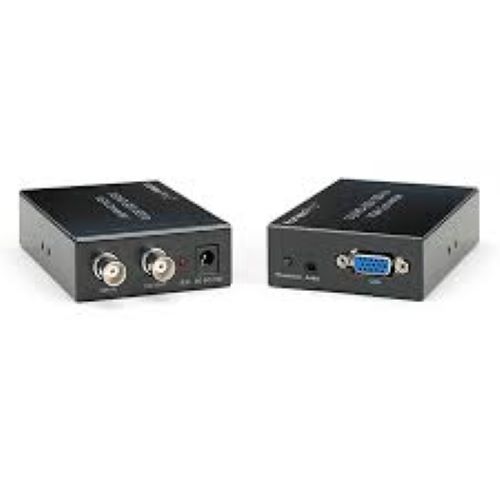

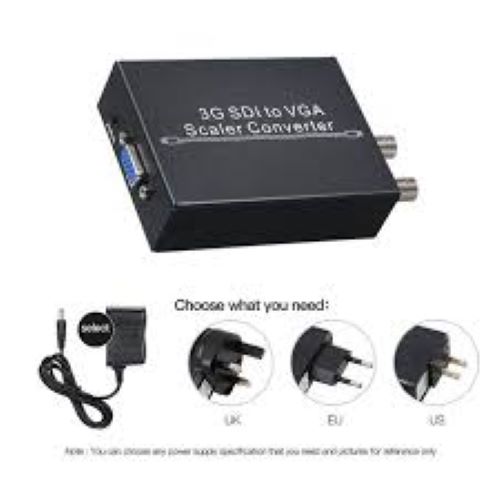

sdi to VGA converter
Features:
- Get the highest quality 3G-SDI conversion to VGA formats
- Built-in Scaler for optimal resolution up to 1920x1080
- Front panel “Resolution” button for switching to different video resolutions
- Equalized and re-clocked loop output
- Supports multiple VGA output resolutions:
- SDI: 800x600,1024x768
- PC: 1280x720, 1440x900
- PC: 1280x1024, 1680x1050
- HD: 1600x1200, 1920x1080 & 1920x1200
- Simultaneous display with SDI /VGA signals
- Alternative audio output to analog 2CH stereo
- Data rates up to 3 Gbps
- SDI Input cable length support - up to 300m
- HD mode length up to: 200m
- Capable of cascading to multiple units
- Automatic detection of SD, HD and 3 Gb/s SDI standards
- Compact in size, perfect for mobile broadcasting units
- Note: RG59 cable is required for SDI transmission, we recommend a 75-ohm high quality coaxial cable.
