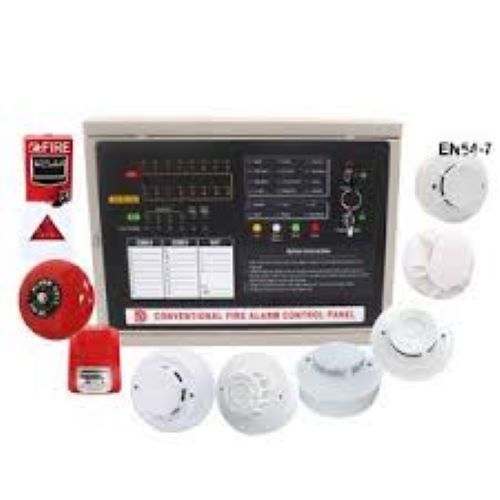

4 zone fire alarm panels

Features:

• Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB) with optional EN54 part 13 compliance from the BSI.
• Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry.
• Four detector zone circuits.
• Four conventional sounder circuits.
• Integral 1.5A EN54-4/A2 compliant switch mode PSU.
• Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones.
• Two on-board relays (Fire and Fault).
• Two open-collector outputs (Remote and Reset).
• 'Class change' and alert inputs.
• Installer-friendly design.
• Low 25mA quiescent current.
• Multiple indicators.
• System expansion connections provided for up to eight two-wire repeaters (one CFP761 network card required per system), optional CFP relay boards and optional EN54-13 compliant sounder circuit boards.
• Space for two x 12V 3.3Ah VRLA batteries
